Ordnance Survey benchmark
Hardly lettering, but certainly a symbol...
Ipswich Historic Lettering: Benchmark 1   Ipswich Historic Lettering: Benchmark 22014 images

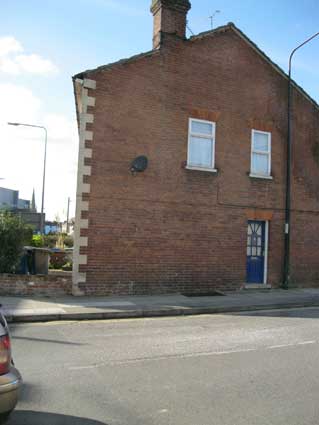

The corner (town side) of Christchurch Street and Woodbridge Road has a house bearing the familiar quoins at its vertical edge. Many houses have these made out of bricks and painted to resemble stone blocks, but these ones are the real thing. The third block up from the pavement bears the three angled, tapering cuts resembling an arrow pointing towards a horizontal line.

The term bench mark, or benchmark, originates from the chiseled horizontal marks that surveyors made in stone structures, into which an angle-iron could be placed to form a "bench" for a leveling rod, thus ensuring that a leveling rod could be accurately repositioned in the same place in the future. These marks were usually indicated with a chiseled arrow below the horizontal line.

The term is generally applied to any item used to mark a point as an elevation reference. Frequently, bronze or aluminum disks are set in stone or concrete, or on rods driven deeply into the earth to provide a stable elevation point. The height of a benchmark is calculated relative to the heights of nearby benchmarks in a network extending from a fundamental benchmark. A fundamental benchmark is a point with a precisely known relationship to the level datum of the area, typically Mean Sea Level (see the Ordnance Survey benchmark and 'High Water' mark on the Custom House for more information). The position and height of each benchmark is indicated on large-scale maps.
Ipswich Historic Lettering: Benchmark Leopold rdPhotograph courtesy Don Judge
[UPDATE 17.2.2016: "We've got one of those on our house in Leopold Road, pic attached. I don't know what they used to make the benchmark but it must have been well hardened and very sharp - our bricks are as hard as concrete. Don Judge" Thanks to Don for the image. There is an online Benchmark locator which shows every O.S. benchmark.]

Ordnance Survey Bench Marks

In the United Kingdom these marks are made by the Ordnance Survey, the national mapping agency and one of the world's largest producers of maps. The agency's name indicates its original military purpose: mapping Scotland in the wake of the Jacobite rebellion in 1745. There was also a more general and nationwide need in light of the potential threat of invasion during the Napoleonic Wars, reflected in the inclusion of the War Department's broad arrow in the agency's logo.

Ordnance Survey mapping is usually classified as either "large-scale" (in other words, more detailed) or "small-scale". The Survey's large-scale mapping comprises maps at six inches to the mile or more (1:10,560, superseded by 1:10,000 in the 1950s) and was available as sheets until the 1980s, when it was digitised. Small-scale mapping comprises maps at fewer than six inches to the mile, such as the popular one inch to the mile "leisure" maps and their metric successors. These are still available in traditional sheet form.

The Ordnance Survey's original maps were made by triangulation. For the second survey, in 1934, this process was used again and resulted in the building of many triangulation pillars (trig points): short (approx. 4 feet/1.2 m high), usually square, concrete or stone pillars at prominent locations such as hill tops. Their precise locations were determined by triangulation, and the details in between were then filled in with less precise methods.

Modern Ordnance Survey maps are largely based on aerial photographs, but large numbers of the pillars remain, many of them adopted by private land owners. Ordnance Survey still has a team of surveyors across Great Britain who visit in person and survey areas that cannot be surveyed using photogrammetric methods (such as land obscured by vegetation) and there is an aim of ensuring that any major feature (such as a new motorway or large housing development) is surveyed within six months of its construction. While original survey methods were largely manual, the current surveying task is simplified by the use of Geo-Positioning Satellite (GPS) technology, allowing the most precise surveying standards yet. Ordnance Survey is responsible for a UK-wide network of GPS stations known as "OS Net". These are used for surveying and other organisations can purchase the right to utilise the network for their own uses.

Ordnance Survey still maintains a set of master geodetic reference points to tie the Ordnance Survey geographic datum points to modern measurement systems such as GPS. Ordnance Survey maps of Great Britain use the Ordnance Survey National Grid rather than latitude and longitude to indicate position. The Grid is known technically as OSGB36 (Ordnance Survey Great Britain 1936) and was introduced after the 1936–53 retriangulation.

Although the main O.S. benchmark network is no longer being updated, the record is still in existence and the markers will remain until they are eventually destroyed by redevelopment or erosion. Most surveying is now achieved with satellite techniques although there are still 190 'ground truth stations' known Fundamental Bench Marks (FBMs).

From these FBMs tens of thousands of lower-order BMs were established. There are probably about 500,000 BMs still in existence in the UK.
